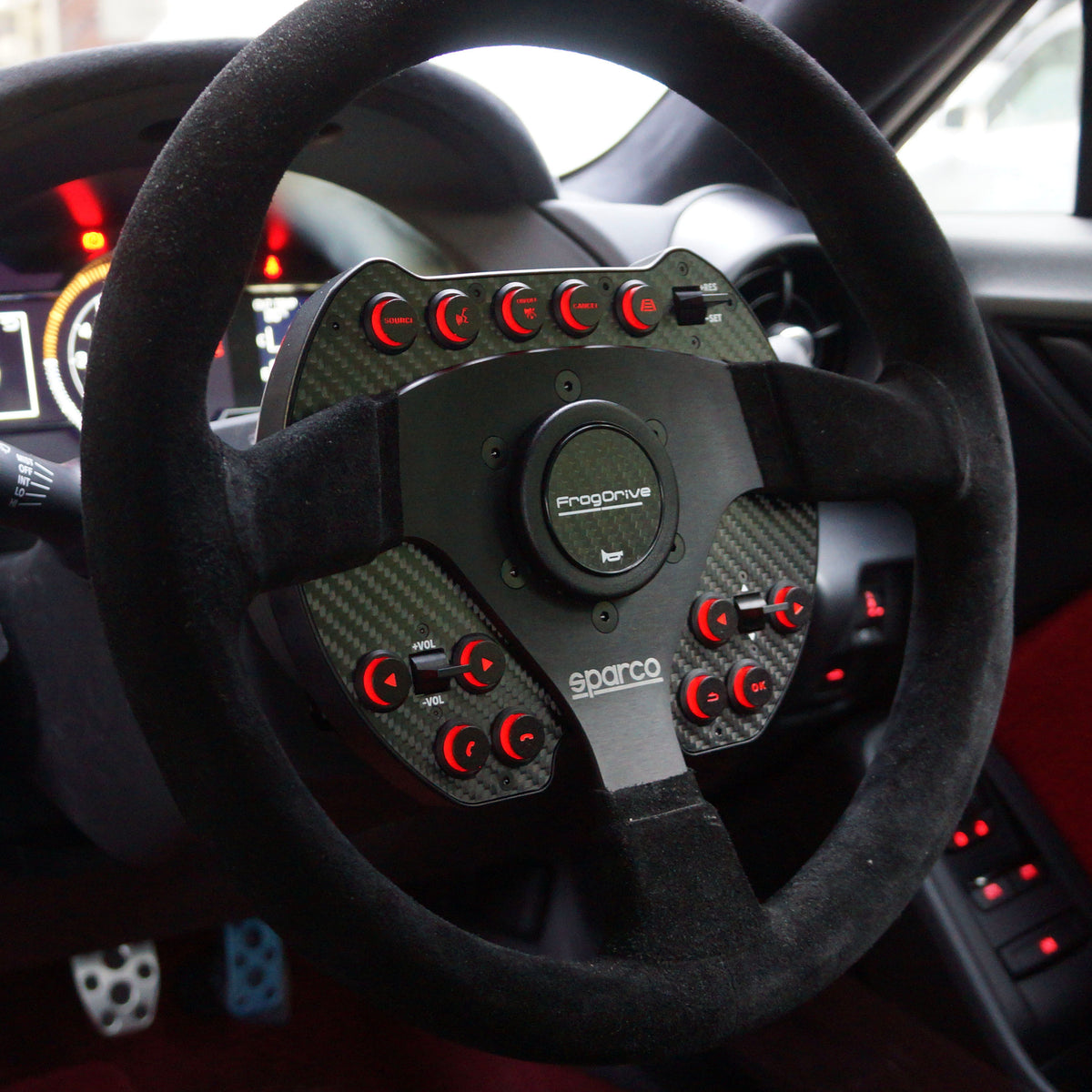

SteeringSwitchCase Pro-C

This case kit allows you to transfer the function switches on your factory steering wheel directly to the switch case when replacing your steering wheel with an aftermarket one. It was designed and engineered with the primary focus being to allow drivers to operate the switches while wearing gloves, even in sports situations . This product also features a new backlight function , which was not available on previous models. This significantly improves the visibility of the switches, even in dark places or when driving at night, allowing for safer and more comfortable operation.

Price (tax included)
GR86/BRZ-C・・・¥77,800 (85,580)
Paddle unit (carbon) ¥45,000 (¥49,500)
Paddle unit (Al) ¥39,800 (¥43,780)

[Applicable age, etc.]
Applied C type and later and Applied Can be installed on A and B ATs.
It can also be installed on Applied A and B manual transmissions, but the lane buttons will not work.

[About the transmission]
Depending on your transmission type , there is a section at the bottom of the purchase page where you can select paddle levers. For manual transmissions, select "none." For automatic transmissions, select either carbon or aluminum paddle levers. Be sure to select one .
Even with an automatic transmission, you can select "None," but you cannot change gears using the paddle levers .

[About delivery time]
Pre-orders are currently being accepted. The release date will be announced later, but it is scheduled to be shipped on July 3, 2025.

【material】
Surface: Dry carbon Back: ABS

[Confirmed compatibility handle]
-This information has been confirmed as of December 1, 2022. We will update this page as soon as it is confirmed.

• Momo Jet 32

• Momo M08

• OMP WRC

• OMP Targa 33

• OMP Lanvote 320*

*A 5mm spacer is required separately.

[Note] An aftermarket steering boss is required for installation.

[About the steering boss and Rapfix 2] Steering switch case
(hereinafter referred to as SSC ) is compatible with Works Bell bosses and Rapfix 2. The order in which they can be installed is as follows:

■ Installation procedure pattern 1
Body → Boss → SSC → SW
Pattern 2
Body → Short boss → RAPFIXⅡ → SSC → SW
Pattern 3
Body → Short boss → SSC → RAPFIXⅡ → SW

*SSC (Steering Switch Case)
*SW (Steering wheel) * For pattern 2, a 13-pole insulator flipper is required. *For pattern 3, a 15mm spacer is required between the short boss and SSC.
*For AT, installation with Rapfix 2 pattern 2 is not possible.

[About the 13-pole insulator]
When fixing with Raffix 2, install the product between the steering wheel and Raffix (pattern 2 above).

In that case, you will need a pre-wired 13-pole insulator.
Works Bell's 13-pole insulators are not pre-wired. We sell pre-wired 13-pole insulators, so please feel free to contact us.

About GTC
When installing with the Works Bell RAPFIX GTC, the SSC and roll connector connections cannot be installed outside the product.
If you select GTC when ordering, additional accessories will be added.
Dedicated cord (extension cord)...¥3,000
15mm spacer...￥1,900

[About installation]
Installation is also possible in our shop.
In that case , you will need to first consider or have the Raffix parts (Raffix, short boss for specific vehicle models, flipper, 13-pole insulator) or steering boss.
Masu .

[Shipping Fees]
Shipping costs will be charged separately depending on the region.
Shipping is from Noda City, Chiba Prefecture.
